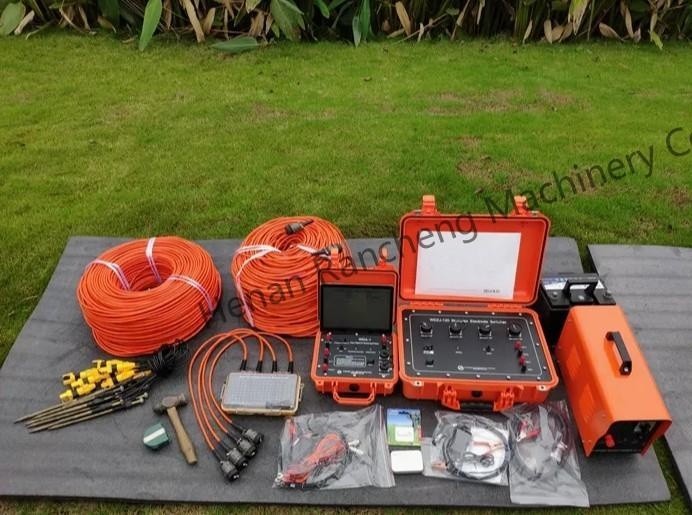

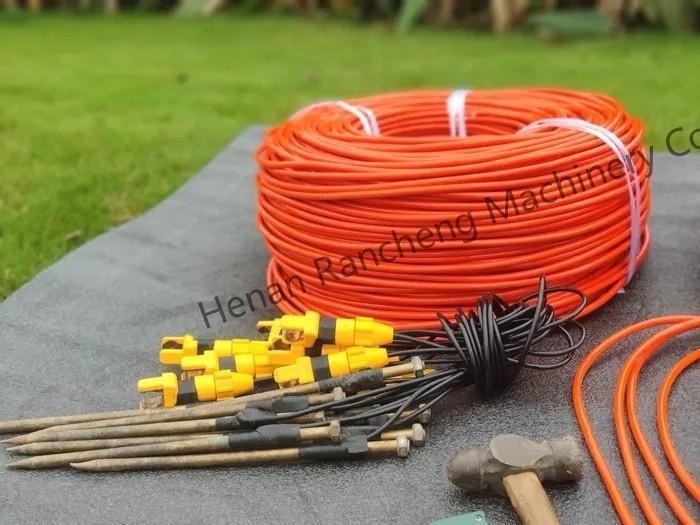

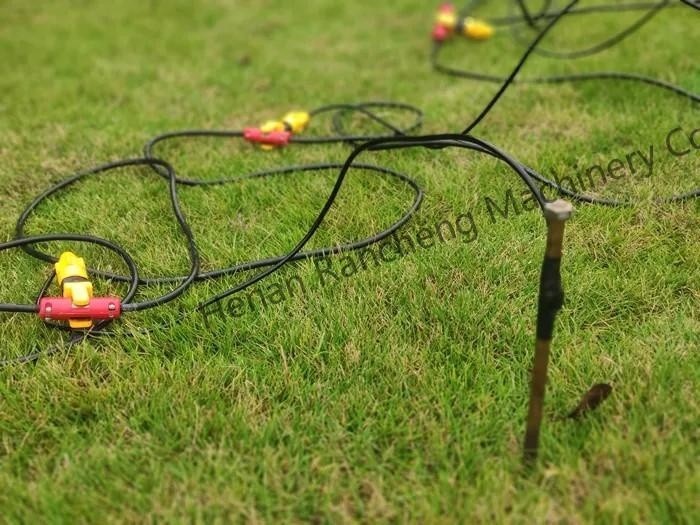

The RCWD-9 IP survey equipment is a complete induced polarization (IP) survey system for mineral exploration and geological investigation. It consists of the WDA-1 DC IP main unit, WDZJ-120 multi-electrode switcher, and PDN-500 inverter high-voltage power supply, together with high-density cables, copper electrodes, and testing accessories.

Combining resistivity and induced polarization measurements, the IP survey system collects subsurface electrical data for mineral exploration, geological structure analysis, and identification of potential mineralized zones. It supports multiple electrode arrays and survey methods, making the IP survey equipment suitable for different field conditions and 2D/3D geophysical surveys.

Transmitting
Maximum power	9000W(VES),2400W(Imaging)
Maximum voltage	1500V(VES),2400 peak-to-peak; 800V(Imaging), 1600 peak-to-peak
Maximum current	6A(VES), 3A(Imaging)
Power supply pulse width	1~60s, duty cycle is 1:1
Receiving
Voltage	± 80V (24 bit A/D)
Vp accuracy(before stacking)	If Vp≥5mV, ±0.2% ±1LSB. If 0.1mV≤ Vp<5mV, ±1%±1LSB.
Current	6A (24bit A/D)
Ip accuracy(before stacking)	If Ip≥ 5mA, ± 0.2% ±1LSB;If 0.1mA≤ Ip<5mA, then ± 1% ±1LSB..
Apparent Polarizability Accuracy	±1% ±1LSB
Suppression	≥80dB, for 50Hz or 60Hz (industrial frequency interference) either in common mode or differential mode interference
Input impedance	>100MΩ
SP compensation range	± 10V

The RCWD-9 IP survey system injects controlled DC current into the ground through the AB electrodes during an induced polarization survey. Polarizable materials in the subsurface produce a chargeability response during and after current injection. The instrument measures the polarization voltage after the current is switched off while simultaneously collecting resistivity data for geophysical survey and mineral exploration.

The multi-electrode switcher automatically changes electrode combinations to collect multiple sets of subsurface electrical data. The survey software processes and inverts the data to generate 2D or 3D resistivity and chargeability models. These results help identify geological anomalies, potential mineralized zones, and underground structures, providing valuable reference for mineral exploration and drilling target selection.

Resistivity + IP measurement: Provides resistivity and chargeability data for geological interpretation.
9,000 W high-power transmission: Up to 1,500 V output for deeper exploration.
120-electrode automatic switching: Enables efficient multi-electrode data acquisition.
2D & 3D imaging: Visualizes subsurface electrical anomalies and their distribution.
Multiple electrode arrays: Suitable for different geological survey requirements.

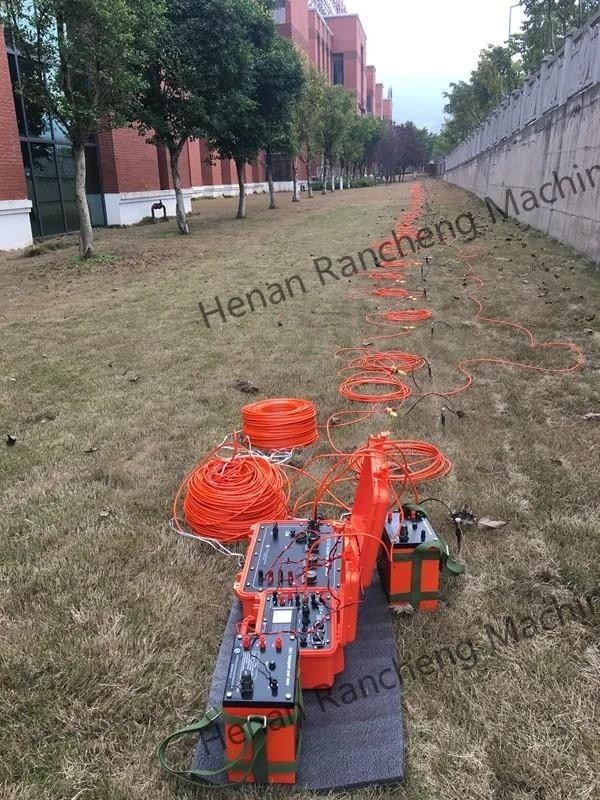

Field-ready design: Can operate with an external battery in areas without grid power.
Portable split-unit design: Separate equipment cases make transportation and field deployment easier.

IP survey system

Metallic mineral exploration
Non-metallic mineral exploration
Gold, copper, lead-zinc, iron and silver exploration
Coalfield investigation
Underground void and goaf investigation
Geological and engineering surveys
Pre-drilling geophysical investigation

Q: What minerals can the RCWD-9 IP Survey Equipment be used for?

A: It is mainly used for IP and resistivity surveys of metallic and non-metallic mineral targets, including gold, copper, lead-zinc, iron and silver deposits. Geological interpretation is required to determine the nature of detected anomalies.

Q: What is the maximum exploration depth?

A: The maximum survey depth can reach up to 800 m, depending on electrode spacing, array configuration, ground conditions and survey design.

Q: Can RCWD-9 IP Survey Equipment work in areas without grid electricity?

A: Yes. An external battery can be used for field operations in remote areas.

Q: Is the system difficult to operate?

A: The system uses a visual software interface for data acquisition and processing. Basic training is recommended for survey setup and data interpretation.

Q: What is the warranty period?

A: The main equipment is covered by a Six-month warranty. Cables, electrodes and other accessories can also be supplied separately.
