Product Description
For decades, we have been committed to refining electromagnetic prospecting technology - from our early short-wire electrical instruments in 1973 to today's advanced 16-channel high-density MT Water Detection Machine.
This new-generation system integrates AI auto-analysis, multi-channel synchronous acquisition, IoT connectivity, and deep electromagnetic inversion technology. It delivers stable field sources, overcomes the depth limitations of traditional electrical prospecting methods, and supports exploration up to 3000 meters.
Designed for modern water-searching tasks, the system combines detachable batteries, power-bank emergency charging, and magnetic quick-connect interfaces. It is rugged, dustproof, waterproof, drop-resistant, and optimized for single-person rapid field deployment.
Technical Parameters
|
Versions |
300m-16D |
500m-16D |
1200m-16D |
2000m-16D |
3000m-16D |
|
Max Depth (m) |
≤300 |
≤500 |
≤1200 |
≤2000 |
≤3000 |
|
Channel Input |
16 channels input simultaneously, maximum electrode spacing 2.5m |
||||
|
Channel Options |
1-14 |
||||
|
Depth Options |
Optional within the maximum depth, refer to 100/200/300/400/500/600/800/1200/2000/3000m |
||||
|
Scan Interval |
10-80 |
||||
|
Connections |
Serial port, Wifi, Bluetooth 4.0, USB (optional 4G) |
||||
|
Display |
10.1-inch IPS wide-angle 178° visual touch screen (1024×600) |
||||
|
OS |
Android 6.0.1 |
||||
|
CPU |
ARM Cortex-A7 8-core CPU 2.0Hz |
||||
|
GPU |
OpenGL ES 2.0 |
||||
|
Core Features |
Multiple options of depths, 2D/3D plotting, removable battery |
||||
|
Sensing Mode |
MN/TT |
||||
|
Frequency Range (hz) |
1-8K |
0.01-6K |
|||
|
Filtering |
Preset or intelligent frequency selection, analog + data filtering 1-16 times superposition optional |
||||
|
Discrim. |
0.1mV±3% |
0.01mV±2% |
|||
|
Acquisition Time (s) |
60-3600 |
120-5400 |
|||
|
Battery |
800mA/H |
||||
|
Console Weight |
1.85kg |
||||
Key Features
Our 16-channel integrated circuit architecture boosts signal stability and noise resistance.
A high-performance processor runs multiple algorithms simultaneously, ensuring precise and reliable results even in challenging environments.

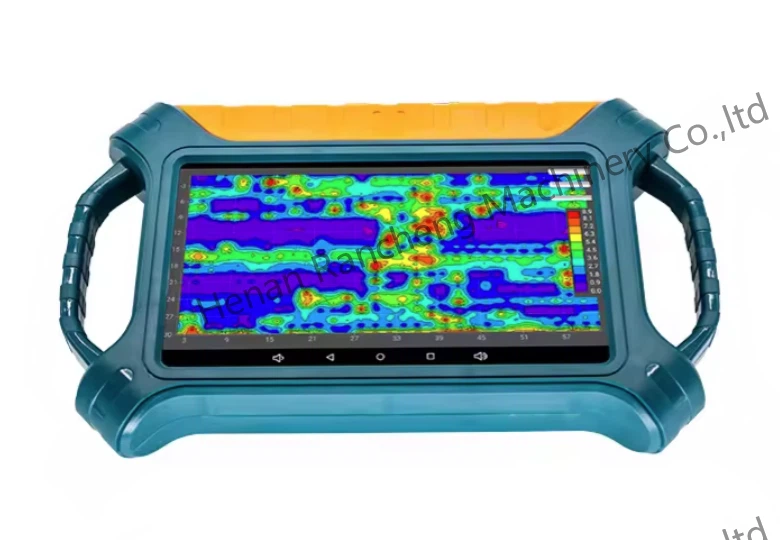

Data is transformed into 2D/3D color sections and multi-curve analysis charts immediately after measurement.
A 10.1-inch touch screen enables intuitive control - most users learn the operation within minutes.
Depth can be freely adjusted according to project needs.
Both MN (electric field) and TT (electromagnetic field) modes can be switched seamlessly, allowing highly adaptive and intelligent surveying strategies.
Data can be viewed on the device, mobile phone, computer, or remote terminal using the same account.
Sharing between different user accounts is also supported, enabling quick collaboration.
Our AI engine continuously learns from thousands of datasets, improving interpretation accuracy with every use.
It provides 24/7 online map review, automatic anomaly detection, and drilling suggestions - giving users confidence in selecting the optimal location for water wells.
Each device includes a complete software suite with lifetime online upgrades.
From data processing to instrument repair and remote technical guidance, we provide full-cycle, lifetime service to ensure uninterrupted field operations.
Advantages
✔ Higher Precision
Multi-channel synchronous acquisition ensures stable field sources and minimizes natural electric field fluctuations.
Users obtain clearer layers, more accurate water-bearing structures, and reliable anomaly identification.
✔ Greater Efficiency
Automatic mapping and AI interpretation dramatically reduce fieldwork duration and data processing time.
✔ Stronger Flexibility
Adjustable depth and multiple measurement modes allow the same device to handle shallow surveys, deep surveys, water detection, or mineral exploration.
✔ Improved Reliability
Rugged design, magnetic connectors, and detachable batteries keep the device operational in harsh terrain and extreme weather.
✔ Better Collaboration
Multi-screen data sharing shortens decision time and enhances teamwork efficiency.
Customer Benefits
This Water Detection Machine empowers users to work with greater certainty and efficiency. Revealing clearer subsurface patterns helps pinpoint promising water-bearing zones earlier in the survey process, reducing unnecessary drilling attempts and saving project costs. Its streamlined workflow and intelligent processing tools minimize time spent on interpretation, allowing teams to focus more on field progress instead of data troubleshooting. The system adapts effortlessly to different survey tasks, making it a practical choice for users who handle varied geological conditions. Most importantly, the reliable imaging results and steady measurement performance give users the assurance they need to plan wells with confidence and make informed project decisions.
Find Water and Minerals Faster with Our 16-Channel Detection Machine
This Water Detection Machine utilizes a corrected natural electromagnetic field measurement method, overcoming the inconsistencies and fluctuations of natural field sources. With 16-channel simultaneous acquisition, it captures relatively stable signals, reducing MN electrode movement errors and providing highly consistent repeat measurements. Accuracy improves by up to 30% and efficiency increases threefold compared to single-channel systems. By measuring natural electric and electromagnetic fields in time slices, it can effectively analyze underground resistivity changes, helping determine water location, depth, and related information.
Whether your goal is groundwater exploration or mineral prospecting, this system delivers precise, high-resolution results. For water surveys, it maps underground water resources with finer layers and superior accuracy. For mineral exploration, it efficiently evaluates orebody shapes, sizes, and estimates deposit potential.
Contact us now for pricing, depth options, and a free technical consultation.
