Products Description

The Underground Water Detector Machine is a high-precision 16-channel intelligent groundwater detection system designed for hydrogeological surveys, water well drilling, agricultural irrigation, engineering exploration, and groundwater resource investigation.

Using 16-channel simultaneous data acquisition and real-time imaging technology, the machine quickly identifies underground water locations, depth, water yield, and geological structures with higher stability and efficiency than traditional single-channel instruments.

Equipped with a 10.1-inch Android touch screen, the system supports real-time 2D and 3D imaging, multi-screen interconnection, and optional wireless probes for convenient field operation in complex environments.

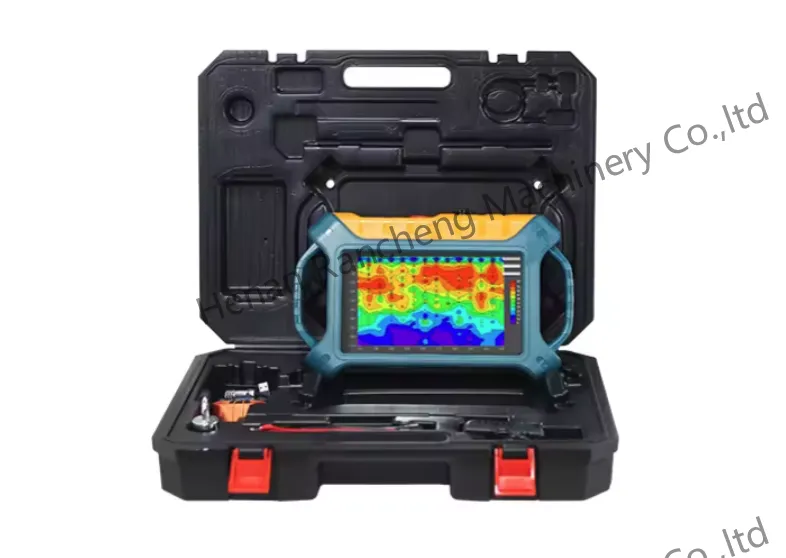

Underground Water Detector Machine 2

Technical Parameters

Versions	300m-16D	500m-16D	1200m-16D	2000m-16D	3000m-16D
Max Depth (m)	≤300	≤500	≤1200	≤2000	≤3000
Channel Input	16 channels input simultaneously, maximum electrode spacing 2.5m
Channel Options	1-14
Depth Options	Optional within the maximum depth, refer to 100/200/300/400/500/600/800/1200/2000/3000m
Scan Interval	10-80
Connections	Serial port, Wifi, Bluetooth 4.0, USB (optional 4G)
Display	10.1-inch IPS wide-angle 178° visual touch screen (1024×600)
OS	Android 6.0.1
CPU	ARM Cortex-A7 8-core CPU 2.0Hz
GPU	OpenGL ES 2.0
Core Features	Multiple options of depths, 2D/3D plotting, removable battery
Sensing Mode	MN/TT
Frequency Range (hz)	1-8K		0.01-6K
Filtering	Preset or intelligent frequency selection, analog + data filtering 1-16 times superposition optional
Discrim.	0.1mV±3%		0.01mV±2%
Acquisition Time (s)	60-3600		120-5400
Battery	800mA/H
Console Weight	1.85kg

Products Advantages

Stable Field Source Acquisition

The 16 channels collect underground signals simultaneously, reducing errors caused by natural electric field fluctuations.

Better Repeatability

Repeated measurements on the same survey line produce highly consistent geological profiles, improving confidence before drilling.

Reduced Human Error

Traditional single-channel instruments require repeated electrode movement, which can create positioning deviations. The 16-channel design minimizes this problem.

Intelligent Signal Filtering

Multi-frequency filtering improves anti-interference performance and enhances signal clarity in noisy environments.

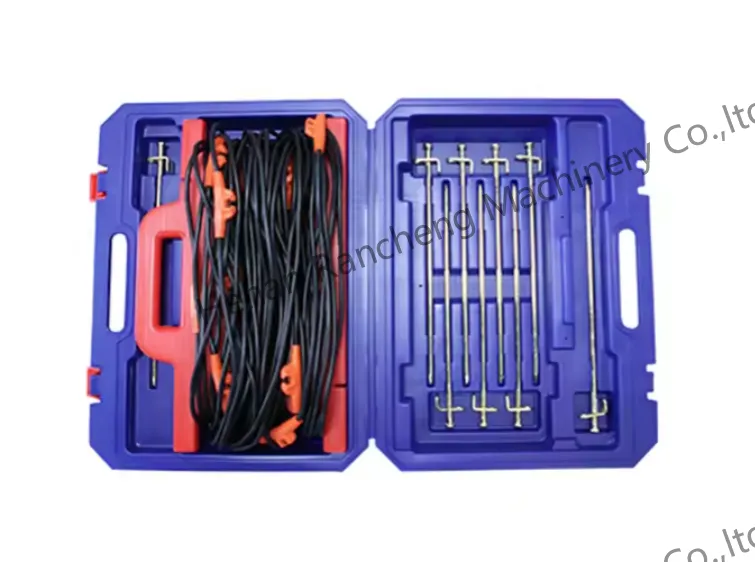

Water Detector Machine 1

FAQ

Q: What is the detection depth of the machine?

A: The 16-channel underground water detector supports detection depths from 300 meters to 3000 meters, depending on geological conditions, ground conductivity, and measurement environment.

Q: Is the depth data accurate?

A: Yes. The 16-channel simultaneous acquisition system improves depth stability and reduces repeated measurement errors compared with traditional single-channel detectors.

Q: Can the machine detect deep groundwater?

A: Yes. The system is suitable for both shallow and deep groundwater exploration, including agricultural wells, industrial water supply, and geothermal water investigation.

Q: Is the machine difficult to operate?

A: No. The Android touch screen and automatic imaging system allow users to quickly complete field measurements and view real-time results.

Q: Does the machine support 2D and 3D imaging?

A: Yes. It can automatically generate real-time 2D profiles, 3D geological images, and curve analysis charts.

Q: Can it work in complex environments?

A: Yes. The machine uses intelligent filtering and anti-interference technology for stable performance in rural, mountainous, and construction environments.
